TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ > Class Template Reference

A class to run a simulate the execution of a Machine. More...

#include <runner/machineRunner.h>

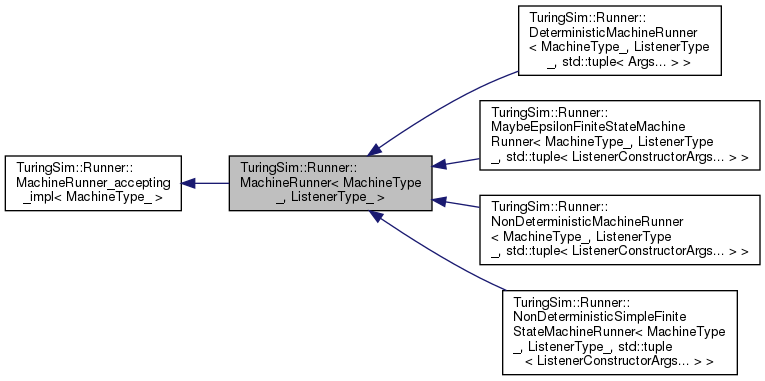

Inheritance diagram for TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >:

Collaboration diagram for TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >:

Public Types
typedef MachineType_	MachineType
	The type of the simulated machine.
typedef ListenerType_	ListenerType
	The type of the listener.
typedef MachineType::StateType	StateType
	The type of states of the machine.
typedef MachineType::StorageType	StorageType
	The type of the memory of the machine.
typedef MachineType::TransitionType	TransitionType
	The type of transitions of the machine.
typedef MachineType::ApplyHelperType	ApplyHelperType
	The type of transitions apply helpers of the machine.
typedef ListenerType::IdType	ListenerIdType
	The type of identifiers used by the listener.

Public Member Functions
	MachineRunner (const MachineType &machine, ListenerType &listener)
	Construct a MachineRunner from a Machine. More...
constexpr	MachineRunner (const MachineRunner &other)=default
	Copy a runner. More...
constexpr	MachineRunner (MachineRunner &&other)=default
	Move a runner. More...
constexpr MachineRunner &	operator= (const MachineRunner &other)=default
	Copy a runner. More...
constexpr MachineRunner &	operator= (MachineRunner &&other)=default
	Move a runner. More...
virtual	~MachineRunner () override=default
	Destroy the runner.
virtual void	step (size_t nbIter=1)=0
	Execute a given number of steps of the machine, one step by default. More...
virtual void	exec ()=0
	Run the machine until it halts. More...

Protected Member Functions
virtual void	oneStep ()=0
	Execute one step of the machine.

Protected Attributes
const MachineType &	machine
	The simulated machine.
ListenerType &	listener
	The listener.

Detailed Description

template<typename MachineType_, typename ListenerType_>
class TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >

A class to run a simulate the execution of a Machine.

Template Parameters

MachineType_	the type of the simulated machine. Must be a subclass of TuringSim::Machine::Machine.
ListenerType_	the type of the listener that follows the execution of the listener.

The listener is used to observe the execution of the machine.

This base class if pretty poor since we want to allow deterministic and non-deterministic executions, using arbitrary strategy.

Definition at line 132 of file machineRunner.h.

Constructor & Destructor Documentation

MachineRunner() [1/3]

template<typename MachineType_ , typename ListenerType_ >

TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >::MachineRunner ( const MachineType &  machine, ListenerType &  listener  )

inline

Construct a MachineRunner from a Machine.

Parameters

[in]	machine	the machine to run.
[in]	listener	the listener that monitors the machine execution. The machine is capture by const reference.

Definition at line 181 of file machineRunner.h.

MachineRunner() [2/3]

template<typename MachineType_ , typename ListenerType_ >

constexpr TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >::MachineRunner ( const MachineRunner< MachineType_, ListenerType_ > &  other )

constexprdefault

Copy a runner.

Parameters

[in]

other

the runner to copy.

MachineRunner() [3/3]

template<typename MachineType_ , typename ListenerType_ >

constexpr TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >::MachineRunner ( MachineRunner< MachineType_, ListenerType_ > &&  other )

constexprdefault

Move a runner.

Parameters

[in,out]

other

the runner to move.

Member Function Documentation

exec()

template<typename MachineType_ , typename ListenerType_ >

virtual void TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >::exec ( )

pure virtual

Run the machine until it halts.

Beware, beware! It is intrinsically unsafe! And we provide NO warranty.

Implemented in TuringSim::Runner::NonDeterministicSimpleFiniteStateMachineRunner< MachineType_, ListenerType_, std::tuple< ListenerConstructorArgs... > >, TuringSim::Runner::NonDeterministicMachineRunner< MachineType_, ListenerType_, std::tuple< ListenerConstructorArgs... > >, TuringSim::Runner::MaybeEpsilonFiniteStateMachineRunner< MachineType_, ListenerType_, std::tuple< ListenerConstructorArgs... > >, and TuringSim::Runner::DeterministicMachineRunner< MachineType_, ListenerType_, std::tuple< Args... > >.

operator=() [1/2]

template<typename MachineType_ , typename ListenerType_ >

constexpr MachineRunner& TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >::operator= ( const MachineRunner< MachineType_, ListenerType_ > &  other )

constexprdefault

Copy a runner.

Parameters

[in]

other

the runner to copy.

Returns

a reference to *this.

operator=() [2/2]

template<typename MachineType_ , typename ListenerType_ >

constexpr MachineRunner& TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >::operator= ( MachineRunner< MachineType_, ListenerType_ > &&  other )

constexprdefault

Move a runner.

Parameters

[in,out]

other

the runner to move.

Returns

a reference to *this.

step()

template<typename MachineType_ , typename ListenerType_ >

virtual void TuringSim::Runner::MachineRunner< MachineType_, ListenerType_ >::step ( size_t  nbIter = 1 )

pure virtual

Execute a given number of steps of the machine, one step by default.

Parameters

[in]

nbIter

the number of steps to run.

Implemented in TuringSim::Runner::NonDeterministicSimpleFiniteStateMachineRunner< MachineType_, ListenerType_, std::tuple< ListenerConstructorArgs... > >, TuringSim::Runner::NonDeterministicMachineRunner< MachineType_, ListenerType_, std::tuple< ListenerConstructorArgs... > >, TuringSim::Runner::MaybeEpsilonFiniteStateMachineRunner< MachineType_, ListenerType_, std::tuple< ListenerConstructorArgs... > >, and TuringSim::Runner::DeterministicMachineRunner< MachineType_, ListenerType_, std::tuple< Args... > >.

---

The documentation for this class was generated from the following file:

• include/runner/machineRunner.h
