The base class for m-configurations. More...

#include <state/mConfiguration.h>

Inheritance diagram for TuringSim::State::MConfiguration::MConfiguration< NodeType >:

Collaboration diagram for TuringSim::State::MConfiguration::MConfiguration< NodeType >:

Public Types
typedef std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType > > >	Unification
	The unification type between a pattern and a m-configuration.

typedef std::map< NodeType, NodeType >	AlphaRewriting
	The type of rewriting in an alpha-equivalence, in one direction only.

typedef std::pair< AlphaRewriting, AlphaRewriting >	AlphaRelation
	The type of bi-directional alpha-equivalence.

typedef StateType_	StateType
	The type of states matched.

typedef MatcherType_	MatcherType
	The type returned when a state matches the pattern.

Public Types inherited from TuringSim::State::StatePattern< std::shared_ptr< const MConfiguration< NodeType > >, std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType > > > >
typedef std::shared_ptr< const MConfiguration< NodeType > >	StateType
	The type of states matched.

typedef std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType > > >	MatcherType
	The type returned when a state matches the pattern.

Public Member Functions
constexpr	MConfiguration (const NodeType &leaf)
	Create a constant leaf. More...

constexpr	MConfiguration (const NodeType &leaf, bool isVar)
	Create a leaf. More...

constexpr	MConfiguration (const NodeType &node, const std::vector< MConfiguration< NodeType >> &subTrees)
	Create an interior node. More...

constexpr	MConfiguration (const NodeType &node, std::vector< MConfiguration< NodeType >> &&subTrees)
	Create an interior node and consume the subTrees. More...

constexpr	MConfiguration (const NodeType &node, const std::vector< std::shared_ptr< const MConfiguration< NodeType >>> &subTrees)
	Create an interior node. More...

constexpr	MConfiguration (const NodeType &node, std::vector< std::shared_ptr< const MConfiguration< NodeType >>> &&subTrees)
	Create an interior node. More...

constexpr	MConfiguration (const MConfiguration< NodeType > &other)
	Copy constructor. More...

constexpr	MConfiguration (MConfiguration< NodeType > &&)
	Move constructor. More...

constexpr MConfiguration &	operator= (const MConfiguration< NodeType > &)
	Copy assignment operator. More...

constexpr MConfiguration &	operator= (MConfiguration< NodeType > &&)
	Move assignment operator. More...

virtual	~MConfiguration () override=default
	Destructor. More...

constexpr std::shared_ptr< const MConfiguration< NodeType > >	getArg (size_t) const
	Returns a child. More...

constexpr const NodeType &	getNode () const
	Returns the content of the node. More...

constexpr size_t	getArity () const
	Returns the arity of the node. More...

constexpr bool	isLeaf () const
	Returns whether the node is a leaf. More...

constexpr bool	isVariable () const
	Returns whether the node is a variable. More...

constexpr bool	isPattern () const
	Returns whether the MConfiguration is a pattern. More...

constexpr bool	isMFunction () const
	Returns whether the MConfiguration is a m-function (ie. not a pattern). More...

constexpr Unification	unifyWithMConf (const std::shared_ptr< const MConfiguration< NodeType >> &state) const
	Unify the MConfiguration with another. More...

Unification	unify (const std::shared_ptr< const MConfiguration< NodeType >> &state) const
	Unify the MConfiguration with another. More...

std::optional< Unification >	unifyWithMConf_opt (const std::shared_ptr< const MConfiguration< NodeType >> &state) const noexcept
	Unify the MConfiguration with another. More...

std::optional< MatcherType >	match (const StateType &state) const noexcept override final
	Unify the MConfiguration with another. More...

std::optional< Unification >	unify_opt (const std::shared_ptr< const MConfiguration< NodeType >> &state) const
	Unify the MConfiguration with another. More...

template<typename CharT = char, typename Traits = std::char_traits<CharT>, typename Alloc = std::allocator<CharT>>
std::basic_string< CharT, Traits, Alloc >	toString () const
	Convert the MConfiguration in a string. More...

constexpr int	compare (const MConfiguration< NodeType > &other) const
	Compare two MConfiguration. OCaml style, waiting for <=>. Strong ordering. More...

constexpr bool	operator!= (const MConfiguration< NodeType > &other) const
	Test whether two MConfiguration are different. More...

constexpr bool	operator== (const MConfiguration< NodeType > &other) const
	Test whether two MConfiguration are the same. More...

bool	operator< (const MConfiguration< NodeType > &other) const
	Compare two MConfiguration. More...

std::optional< AlphaRelation >	isAlphaEquivalent (const std::shared_ptr< const MConfiguration< NodeType >> &other) const
	Test whether two MConfiguration are alpha-equivalent. More...

void	isAlphaEquivalent (const std::shared_ptr< const MConfiguration< NodeType >> &other, AlphaRewriting &direct, AlphaRewriting &back) const
	Test whether two MConfiguration are alpha-equivalent. More...

template<typename CharT = char, typename Traits = std::char_traits<CharT>>
std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)>	debug () const
	Return a debug printer for `*this`. More...

Public Member Functions inherited from TuringSim::State::StatePattern< std::shared_ptr< const MConfiguration< NodeType > >, std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType > > > >
constexpr	StatePattern ()=default
	Default constructor.

constexpr	StatePattern (const StatePattern &other)=default
	Copy a state pattern. More...

constexpr	StatePattern (StatePattern &&other)=default
	Move a state pattern. More...

constexpr StatePattern &	operator= (const StatePattern &other)=default
	Copy a state pattern. More...

constexpr StatePattern &	operator= (StatePattern &&other)=default
	Move a state pattern. More...

virtual	~StatePattern ()=default
	Destructor.

virtual std::optional< MatcherType >	match (const StateType &state) const noexcept=0
	Test if a state matches. More...

Static Public Member Functions
static std::shared_ptr< const MConfiguration< NodeType > >	applySubstitution (std::shared_ptr< const MConfiguration< NodeType >> pattern, const Unification &subs)
	Apply a substitution to the tree. More...

static std::shared_ptr< const MConfiguration< NodeType > >	applySubstitution (std::shared_ptr< const MConfiguration< NodeType >> pattern, const Unification &subs, const std::shared_ptr< const MConfiguration< NodeType >> &def)
	Apply a substitution to the tree. More...

static void	unify_state (const std::shared_ptr< const MConfiguration< NodeType >> &state, const MConfiguration< NodeType > &pattern, std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType >>> &unification)
	unify a state with a pattern, while filling a unification. More...

static std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType > > >	unify_state (const std::shared_ptr< const MConfiguration< NodeType >> &state, const MConfiguration< NodeType > &pattern)
	unify a state with a pattern. More...

template<typename CharT = char, typename Traits = std::char_traits<CharT>>
static std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)>	debug (const Unification &unification)
	Return a debug printer for `unification`. More...

template<typename CharT = char, typename Traits = std::char_traits<CharT>>
static std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)>	debug (const AlphaRewriting &rewriting)
	Return a debug printer for `rewriting`. More...

template<typename CharT = char, typename Traits = std::char_traits<CharT>>
static std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)>	debug (const AlphaRelation &relation)
	Return a debug printer for `relation`. More...

Protected Attributes
NodeType	node
	The content of the node.

bool	isVar
	Whether the node is a variable. More...

std::vector< std::shared_ptr< const MConfiguration< NodeType > > >	args
	The ordered list of children.

bool	is_pattern
	Whether the MConfiguration is a pattern.

Friends
template<typename U , typename CharT , typename Traits >
constexpr friend std::basic_ostream< CharT, Traits > &	operator<< (std::basic_ostream< CharT, Traits > &os, const MConfiguration< U > &m_conf)
	Print a MConfiguration. More...

Detailed Description

template<typename NodeType>
class TuringSim::State::MConfiguration::MConfiguration< NodeType >

The base class for m-configurations.

Template Parameters

NodeType The type of the leaves

A m-configuration is a tree with ordered nodes of type T. Such a tree can encode a state or a pattern where some leaves are variables.

Definition at line 21 of file mConfiguration.h.

Constructor & Destructor Documentation

◆ MConfiguration() [1/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration ( const NodeType & leaf )

constexpr

Create a constant leaf.

Parameters

[in] leaf The content of the leaf.

Complexity \(\mathcal{O}(1)\)

Definition at line 521 of file mConfiguration.h.

◆ MConfiguration() [2/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration	(	const NodeType &	leaf,
		bool	isVar
	)

constexpr

Create a leaf.

Parameters

[in]	leaf	The content of the leaf.
[in]	isVar	If true, the leaf is a variable. Otherwise, it is a constant.

Complexity \(\mathcal{O}(1)\)

Definition at line 530 of file mConfiguration.h.

◆ MConfiguration() [3/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration	(	const NodeType &	node,
		const std::vector< MConfiguration< NodeType >> &	subTrees
	)

constexpr

Create an interior node.

Parameters

[in]	node	The content of the node.
[in]	subTrees	The children of the node.

Complexity \(\mathcal{O}(|\texttt{a}|)\)

Definition at line 539 of file mConfiguration.h.

◆ MConfiguration() [4/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration	(	const NodeType &	node,
		std::vector< MConfiguration< NodeType >> &&	subTrees
	)

constexpr

Create an interior node and consume the subTrees.

Parameters

[in]	node	The content of the node.
[in]	subTrees	The children of the node.

Complexity \(\mathcal{O}(|\texttt{a}|)\)

Definition at line 552 of file mConfiguration.h.

◆ MConfiguration() [5/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration	(	const NodeType &	node,
		const std::vector< std::shared_ptr< const MConfiguration< NodeType >>> &	subTrees
	)

constexpr

Create an interior node.

Parameters

[in]	node	The content of the node.
[in]	subTrees	The children of the node.

Complexity \(\mathcal{O}(|\texttt{a}|)\)

Definition at line 565 of file mConfiguration.h.

◆ MConfiguration() [6/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration	(	const NodeType &	node,
		std::vector< std::shared_ptr< const MConfiguration< NodeType >>> &&	subTrees
	)

constexpr

Create an interior node.

Parameters

[in]	node	The content of the node.
[in]	subTrees	The children of the node.

Complexity \(\mathcal{O}(|\texttt{a}|)\)

Definition at line 574 of file mConfiguration.h.

◆ MConfiguration() [7/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration ( const MConfiguration< NodeType > & other )

constexpr

Copy constructor.

Parameters

[in] other MConfiguration to copy. Complexity \(\mathcal{O}(|\texttt{other}|)\)

Definition at line 583 of file mConfiguration.h.

◆ MConfiguration() [8/8]

template<typename NodeType >

constexpr TuringSim::State::MConfiguration::MConfiguration< NodeType >::MConfiguration ( MConfiguration< NodeType > && other )

constexpr

Move constructor.

Parameters

[in,out] other MConfiguration to move.

Complexity \(\mathcal{O}(|\texttt{other}|)\)

Definition at line 592 of file mConfiguration.h.

◆ ~MConfiguration()

template<typename NodeType >

virtual TuringSim::State::MConfiguration::MConfiguration< NodeType >::~MConfiguration ( )

overridevirtualdefault

Destructor.

Complexity \(\mathcal{O}(|\texttt{*this}|)\)

Member Function Documentation

◆ applySubstitution() [1/2]

template<typename NodeType >

std::shared_ptr< const MConfiguration< NodeType > > TuringSim::State::MConfiguration::MConfiguration< NodeType >::applySubstitution	(	std::shared_ptr< const MConfiguration< NodeType >>	pattern,
		const Unification &	subs
	)

static

Apply a substitution to the tree.

Parameters

[in]	pattern	The m-configuration in which to apply the substitution.
[in]	subs	The substitution to apply. The substitution is a map from node content to MConfiguration.

Returns: a shared pointer to the const resulting MConfiguration.

Replace all variable leaf by the corresponding MConfiguration.

Complexity \(\mathcal{O}(|\texttt{*this}|)\)

Definition at line 660 of file mConfiguration.h.

Here is the caller graph for this function:

◆ applySubstitution() [2/2]

template<typename NodeType >

std::shared_ptr< const MConfiguration< NodeType > > TuringSim::State::MConfiguration::MConfiguration< NodeType >::applySubstitution	(	std::shared_ptr< const MConfiguration< NodeType >>	pattern,
		const Unification &	subs,
		const std::shared_ptr< const MConfiguration< NodeType >> &	def
	)

static

Apply a substitution to the tree.

Parameters

[in]	pattern	The m-configuration in which to apply the substitution.
[in]	subs	The substitution to apply. The substitution is a map from node content to MConfiguration.
[in]	def	The default tree for all variable without substitution.

Returns: a shared pointer to the const resulting MConfiguration.

Replace all variable leaf by the corresponding MConfiguration.

Complexity \(\mathcal{O}(|\texttt{*this}|)\)

Definition at line 683 of file mConfiguration.h.

◆ compare()

template<typename NodeType >

constexpr int TuringSim::State::MConfiguration::MConfiguration< NodeType >::compare ( const MConfiguration< NodeType > & other ) const

constexpr

Compare two MConfiguration. OCaml style, waiting for <=>. Strong ordering.

Parameters

[in] other the other configuration to compare.

Returns: A negative integer if *this < other, positive if *this > other, and zero if *this == other.

Complexity \(\mathcal{O}(\min\{|\texttt{*this}|, |\texttt{other}|\})\)

Definition at line 842 of file mConfiguration.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ debug() [1/4]

template<typename NodeType >

template<typename CharT , typename Traits >

std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)> TuringSim::State::MConfiguration::MConfiguration< NodeType >::debug

Return a debug printer for *this.

Template Parameters

CharT	char type.
Traits	`std::basic_ostream` trait.

Returns: the debug printer, to use with Utils::Debug::operator<<().

Definition at line 953 of file mConfiguration.h.

Here is the caller graph for this function:

◆ debug() [2/4]

template<typename NodeType >

template<typename CharT , typename Traits >

std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)> TuringSim::State::MConfiguration::MConfiguration< NodeType >::debug ( const AlphaRelation & relation )

static

Return a debug printer for relation.

Template Parameters

CharT	char type.
Traits	`std::basic_ostream` trait.

Parameters

[in] relation the relation to print.

Returns: the debug printer, to use with Utils::Debug::operator<<().

Definition at line 982 of file mConfiguration.h.

Here is the call graph for this function:

◆ debug() [3/4]

template<typename NodeType >

template<typename CharT , typename Traits >

std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)> TuringSim::State::MConfiguration::MConfiguration< NodeType >::debug ( const AlphaRewriting & rewriting )

static

Return a debug printer for rewriting.

Template Parameters

CharT	char type.
Traits	`std::basic_ostream` trait.

Parameters

[in] rewriting the rewriting to print.

Returns: the debug printer, to use with Utils::Debug::operator<<().

Definition at line 976 of file mConfiguration.h.

Here is the call graph for this function:

◆ debug() [4/4]

template<typename NodeType >

template<typename CharT , typename Traits >

std::function< std::basic_ostream< CharT, Traits > &(std::basic_ostream< CharT, Traits > &)> TuringSim::State::MConfiguration::MConfiguration< NodeType >::debug ( const Unification & unification )

static

Return a debug printer for unification.

Template Parameters

CharT	char type.
Traits	`std::basic_ostream` trait.

Parameters

[in] unification the unification to print.

Returns: the debug printer, to use with Utils::Debug::operator<<().

Definition at line 970 of file mConfiguration.h.

Here is the call graph for this function:

◆ getArg()

template<typename NodeType >

constexpr std::shared_ptr< const MConfiguration< NodeType > > TuringSim::State::MConfiguration::MConfiguration< NodeType >::getArg ( size_t i ) const

constexpr

Returns a child.

Parameters

[in] i The number of the child to get.

Returns: The i-th child.

Throws std::out_of_bounds exception is i is too large.

Complexity \(\mathcal{O}(1)\)

Definition at line 625 of file mConfiguration.h.

◆ getArity()

template<typename NodeType >

constexpr size_t TuringSim::State::MConfiguration::MConfiguration< NodeType >::getArity

constexpr

Returns the arity of the node.

Returns: The number of children.

Complexity \(\mathcal{O}(1)\)

Definition at line 635 of file mConfiguration.h.

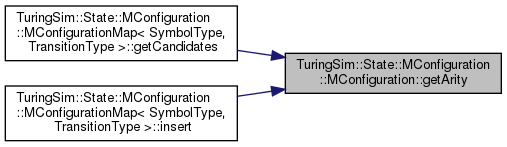

Here is the caller graph for this function:

◆ getNode()

template<typename NodeType >

constexpr const NodeType & TuringSim::State::MConfiguration::MConfiguration< NodeType >::getNode

constexpr

Returns the content of the node.

Returns: the content of the node by const reference.

Complexity \(\mathcal{O}(1)\)

Definition at line 630 of file mConfiguration.h.

Here is the caller graph for this function:

◆ isAlphaEquivalent() [1/2]

template<typename NodeType >

std::optional< typename MConfiguration< NodeType >::AlphaRelation > TuringSim::State::MConfiguration::MConfiguration< NodeType >::isAlphaEquivalent ( const std::shared_ptr< const MConfiguration< NodeType >> & other ) const

Test whether two MConfiguration are alpha-equivalent.

Parameters

[in] other the other configuration to test equivalence with.

Returns: an empty option if m-configuration are not equivalent. Otherwise, an option containing the direct and back rewriting.

Complexity \(\mathcal{O}(\min\{|\texttt{*this}|, |\texttt{other}|\})\)

Definition at line 897 of file mConfiguration.h.

◆ isAlphaEquivalent() [2/2]

template<typename NodeType >

void TuringSim::State::MConfiguration::MConfiguration< NodeType >::isAlphaEquivalent	(	const std::shared_ptr< const MConfiguration< NodeType >> &	other,
		AlphaRewriting &	direct,
		AlphaRewriting &	back
	)		const

Test whether two MConfiguration are alpha-equivalent.

Parameters

[in]	other	the other configuration to test equivalence with.
[in,out]	direct	the current direct rewriting.
[in,out]	back	the current back rewriting.

Exceptions

NoAlphaEquivalenceException if states are not alpha-equivalent.

Complexity \(\mathcal{O}(\min\{|\texttt{*this}|, |\texttt{other}|\})\)

Definition at line 909 of file mConfiguration.h.

◆ isLeaf()

template<typename NodeType >

constexpr bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::isLeaf

constexpr

Returns whether the node is a leaf.

Returns: True is the node is a leaf (constant or variable)

Complexity \(\mathcal{O}(1)\)

Definition at line 640 of file mConfiguration.h.

◆ isMFunction()

template<typename NodeType >

constexpr bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::isMFunction

constexpr

Returns whether the MConfiguration is a m-function (ie. not a pattern).

Returns: true iff the MConfiguration rooted at this node is not a pattern.

Complexity \(\mathcal{O}(|\texttt{*this}|)\)

Definition at line 655 of file mConfiguration.h.

◆ isPattern()

template<typename NodeType >

constexpr bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::isPattern

constexpr

Returns whether the MConfiguration is a pattern.

Returns: true iff the MConfiguration rooted at this node is a pattern.

Inspects recursively.

Complexity \(\mathcal{O}(|\texttt{*this}|)\)

Definition at line 650 of file mConfiguration.h.

◆ isVariable()

template<typename NodeType >

constexpr bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::isVariable

constexpr

Returns whether the node is a variable.

Returns: true iff the node is a variable.

Does not inspect recursively.

Complexity \(\mathcal{O}(1)\)

Definition at line 645 of file mConfiguration.h.

Here is the caller graph for this function:

◆ match()

template<typename NodeType >

std::optional< typename MConfiguration< NodeType >::MatcherType > TuringSim::State::MConfiguration::MConfiguration< NodeType >::match ( const StateType & state ) const

finaloverridenoexcept

Unify the MConfiguration with another.

Parameters

[in] state The other MConfiguration, which have to be a m-function.

Returns: an empty option if unification fails, the unification otherwise.

*this have to be a pattern, UB otherwise.

Same as MConfiguration::unifyWithMConf_opt

Definition at line 811 of file mConfiguration.h.

◆ operator!=()

template<typename NodeType >

constexpr bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::operator!= ( const MConfiguration< NodeType > & other ) const

constexpr

Test whether two MConfiguration are different.

Parameters

[in] other the other configuration to compare.

Returns: whether the comparison succeeds.

Complexity \(\mathcal{O}(\min\{|\texttt{*this}|, |\texttt{other}|\})\)

Definition at line 882 of file mConfiguration.h.

◆ operator<()

template<typename NodeType >

bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::operator< ( const MConfiguration< NodeType > & other ) const

Compare two MConfiguration.

Parameters

[in] other the other configuration to compare.

Returns: whether the comparison succeeds.

Complexity \(\mathcal{O}(\min\{|\texttt{*this}|, |\texttt{other}|\})\)

Definition at line 892 of file mConfiguration.h.

◆ operator=() [1/2]

template<typename NodeType >

constexpr MConfiguration< NodeType > & TuringSim::State::MConfiguration::MConfiguration< NodeType >::operator= ( const MConfiguration< NodeType > & other )

constexpr

Copy assignment operator.

Parameters

[in] other MConfiguration to copy.

Returns: A reference to *this

Complexity \(\mathcal{O}(|\texttt{other}|)\)

Definition at line 601 of file mConfiguration.h.

◆ operator=() [2/2]

template<typename NodeType >

constexpr MConfiguration< NodeType > & TuringSim::State::MConfiguration::MConfiguration< NodeType >::operator= ( MConfiguration< NodeType > && other )

constexpr

Move assignment operator.

Parameters

[in,out] other MConfiguration to move.

Returns: A reference to *this

Complexity \(\mathcal{O}(|\texttt{other}|)\)

Definition at line 613 of file mConfiguration.h.

◆ operator==()

template<typename NodeType >

constexpr bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::operator== ( const MConfiguration< NodeType > & other ) const

constexpr

Test whether two MConfiguration are the same.

Parameters

[in] other the other configuration to compare.

Returns: whether the comparison succeeds.

Complexity \(\mathcal{O}(\min\{|\texttt{*this}|, |\texttt{other}|\})\)

Definition at line 887 of file mConfiguration.h.

◆ toString()

template<typename NodeType >

template<typename CharT , typename Traits , typename Alloc >

std::basic_string< CharT, Traits, Alloc > TuringSim::State::MConfiguration::MConfiguration< NodeType >::toString

Convert the MConfiguration in a string.

Template Parameters

CharT	char type.
Traits	the `std::basic_ostream` trait.
Alloc	the allocator.

Returns: a string representing *this, for debug purpose.

The type T have to be convertible to std::string.

Complexity \(\mathcal{O}(|\texttt{*this}|)\)

Definition at line 835 of file mConfiguration.h.

◆ unify()

template<typename NodeType >

MConfiguration< NodeType >::Unification TuringSim::State::MConfiguration::MConfiguration< NodeType >::unify ( const std::shared_ptr< const MConfiguration< NodeType >> & state ) const

Unify the MConfiguration with another.

Parameters

[in] state The other MConfiguration.

Returns: an unification if it succeeds.

Exceptions

NoUnificationException if unification fails.

It must be one pattern and one m-function in *this and other. This function simply call unifyWithMConf or unifyWithPattern.

Complexity \(\mathcal{O}(\max\{|\texttt{*this}|, |\texttt{other}|\})\)

Definition at line 783 of file mConfiguration.h.

◆ unify_opt()

template<typename NodeType >

std::optional< typename MConfiguration< NodeType >::Unification > TuringSim::State::MConfiguration::MConfiguration< NodeType >::unify_opt ( const std::shared_ptr< const MConfiguration< NodeType >> & state ) const

Unify the MConfiguration with another.

Parameters

[in] state The other MConfiguration.

Returns: an empty option if unification fails, the unification otherwise.

Exceptions

NoUnificationException if state is not a m-function or *this is not a pattern.

It must be one pattern and one m-function in *this and other. This function simply call unifyWithMConf or unifyWithPattern.

Complexity \(\mathcal{O}(\max\{|\texttt{*this}|, |\texttt{other}|\})\)

Apart from exceptions, same as MConfiguration::unifyWithMConf_opt

Definition at line 816 of file mConfiguration.h.

◆ unify_state() [1/2]

template<typename NodeType >

std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType > > > TuringSim::State::MConfiguration::MConfiguration< NodeType >::unify_state	(	const std::shared_ptr< const MConfiguration< NodeType >> &	state,
		const MConfiguration< NodeType > &	pattern
	)

static

unify a state with a pattern.

Parameters

[in]	state	a shared pointer to the state to unify.
[in]	pattern	the pattern against which to unify the state.

Returns: the unification, if any.

Exceptions

NoUnificationException if unification fails.

Definition at line 758 of file mConfiguration.h.

Here is the call graph for this function:

◆ unify_state() [2/2]

template<typename NodeType >

void TuringSim::State::MConfiguration::MConfiguration< NodeType >::unify_state	(	const std::shared_ptr< const MConfiguration< NodeType >> &	state,
		const MConfiguration< NodeType > &	pattern,
		std::map< NodeType, std::shared_ptr< const MConfiguration< NodeType >>> &	unification
	)

static

unify a state with a pattern, while filling a unification.

Parameters

[in]	state	a shared pointer to the state to unify.
[in]	pattern	the pattern against which to unify the state.
[in,out]	unification	the unification incrementally filled.

Exceptions

NoUnificationException if unification fails.

Definition at line 706 of file mConfiguration.h.

◆ unifyWithMConf()

template<typename NodeType >

constexpr MConfiguration< NodeType >::Unification TuringSim::State::MConfiguration::MConfiguration< NodeType >::unifyWithMConf ( const std::shared_ptr< const MConfiguration< NodeType >> & state ) const

constexpr

Unify the MConfiguration with another.

Parameters

[in] state The other MConfiguration, which have to be a m-function.

Returns: an unification if it succeeds.

Exceptions

NoUnificationException if unification fails.

*this have to be a pattern.

Complexity \(\mathcal{O}(\max\{|\texttt{*this}|, |\texttt{m_conf}|\})\)

Definition at line 778 of file mConfiguration.h.

◆ unifyWithMConf_opt()

template<typename NodeType >

std::optional< typename MConfiguration< NodeType >::Unification > TuringSim::State::MConfiguration::MConfiguration< NodeType >::unifyWithMConf_opt ( const std::shared_ptr< const MConfiguration< NodeType >> & state ) const

noexcept

Unify the MConfiguration with another.

Parameters

[in] state The other MConfiguration, which have to be a m-function.

Returns: an empty option if unification fails, the unification otherwise.

*this have to be a pattern, UB otherwise.

Complexity \(\mathcal{O}(\max\{|\texttt{*this}|, |\texttt{m_conf}|\})\)

Definition at line 801 of file mConfiguration.h.

Friends And Related Function Documentation

◆ operator<<

template<typename NodeType >

template<typename U , typename CharT , typename Traits >

constexpr friend std::basic_ostream<CharT, Traits>& operator<<	(	std::basic_ostream< CharT, Traits > &	os,
		const MConfiguration< U > &	m_conf
	)

friend

Print a MConfiguration.

Template Parameters

U	the type of nodes of the MConfigurations
CharT	char type
Traits	`std::basic_ostream` trait.

Parameters

[in,out]	os	the output stream
[in]	m_conf	the MConfiguration to print.

Returns: reference to os.

Type U have to have operator<<(std::basic_ostream<CharT, Traits>&, const U&) implemented.

Definition at line 361 of file mConfiguration.h.

Member Data Documentation

◆ isVar

template<typename NodeType >

bool TuringSim::State::MConfiguration::MConfiguration< NodeType >::isVar

protected

Whether the node is a variable.

Must be false if the node is not a leaf.

Definition at line 391 of file mConfiguration.h.

The documentation for this class was generated from the following file:

include/state/mConfiguration/mConfiguration.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Detailed Description

template<typename NodeType> class TuringSim::State::MConfiguration::MConfiguration< NodeType >

Constructor & Destructor Documentation

◆ MConfiguration() [1/8]

◆ MConfiguration() [2/8]

◆ MConfiguration() [3/8]

◆ MConfiguration() [4/8]

◆ MConfiguration() [5/8]

◆ MConfiguration() [6/8]

◆ MConfiguration() [7/8]

◆ MConfiguration() [8/8]

◆ ~MConfiguration()

Member Function Documentation

◆ applySubstitution() [1/2]

◆ applySubstitution() [2/2]

◆ compare()

◆ debug() [1/4]

◆ debug() [2/4]

◆ debug() [3/4]

◆ debug() [4/4]

◆ getArg()

◆ getArity()

◆ getNode()

◆ isAlphaEquivalent() [1/2]

◆ isAlphaEquivalent() [2/2]

◆ isLeaf()

◆ isMFunction()

◆ isPattern()

◆ isVariable()

◆ match()

◆ operator!=()

◆ operator<()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ toString()

◆ unify()

◆ unify_opt()

◆ unify_state() [1/2]

◆ unify_state() [2/2]

◆ unifyWithMConf()

◆ unifyWithMConf_opt()

Friends And Related Function Documentation

◆ operator<<

Member Data Documentation

◆ isVar

template<typename NodeType>
class TuringSim::State::MConfiguration::MConfiguration< NodeType >
