A DynamicSymbolPattern with a predicate adapted to m-configuration. More...

#include <symbol/turingMachineSymbolPattern.h>

Inheritance diagram for TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >:

Collaboration diagram for TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >:

Public Member Functions
constexpr	TuringStyleDynamicSymbolPattern (bool neg)
	Produce a trivial pattern. More...

constexpr	TuringStyleDynamicSymbolPattern (const SymbolType &key)
	Make a dynamic pattern that accepts a single key. More...

constexpr	TuringStyleDynamicSymbolPattern (const std::set< SymbolType > &keys)
	Make a dynamic pattern that accepts a set of keys. More...

constexpr	TuringStyleDynamicSymbolPattern (const std::set< SymbolType > &keys, bool neg)
	Make a dynamic pattern that accepts or rejects a set of keys. More...

virtual bool	match (const SymbolType &symbol, const std::map< SymbolType, State::MConfiguration::MConfiguration< SymbolType >> &context) const override
	Check is a symbol is accepted. More...

constexpr bool	operator== (const TuringStyleDynamicSymbolPattern< SymbolType > &other) const
	Equality operator. More...

constexpr bool	operator!= (const TuringStyleDynamicSymbolPattern< SymbolType > &other) const
	Non-equality operator. More...

constexpr bool	operator< (const TuringStyleDynamicSymbolPattern< SymbolType > &other) const
	Less than operator. Total order. More...

Public Member Functions inherited from TuringSim::Symbol::DynamicSymbolPattern< SymbolType, State::MConfiguration::MConfiguration< SymbolType >, SymbolType >
constexpr	DynamicSymbolPattern (bool neg)
	Produce a trivial pattern. More...

constexpr	DynamicSymbolPattern (const SymbolType &key)
	Make a dynamic pattern that accepts a single key. More...

constexpr	DynamicSymbolPattern (const std::set< SymbolType > &keys)
	Make a dynamic pattern that accepts a set of keys. More...

constexpr	DynamicSymbolPattern (const std::set< SymbolType > &keys, bool neg)
	Make a dynamic pattern that accepts or rejects a set of keys. More...

constexpr bool	matchAccordingToPredicate (const std::map< SymbolType, State::MConfiguration::MConfiguration< SymbolType > > &context, const std::function< bool(const State::MConfiguration::MConfiguration< SymbolType > &)> &predicate) const
	Test if a key match a given predicate in a given context. More...

constexpr bool	operator== (const DynamicSymbolPattern< SymbolType, State::MConfiguration::MConfiguration< SymbolType >, SymbolType > &other) const
	Equality operator. More...

constexpr bool	operator!= (const DynamicSymbolPattern< SymbolType, State::MConfiguration::MConfiguration< SymbolType >, SymbolType > &other) const
	Non-equality operator. More...

constexpr bool	operator< (const DynamicSymbolPattern< SymbolType, State::MConfiguration::MConfiguration< SymbolType >, SymbolType > &other) const
	Less than operator. More...

constexpr bool	isAlphaEquivalent (const DynamicSymbolPattern< SymbolType, State::MConfiguration::MConfiguration< SymbolType >, SymbolType > &other, const std::map< SymbolType, SymbolType > &rewriting) const
	Test if, given a renaming of keys, `*this` is alpha-equivalent to another DynamicSymbolPattern. More...

Public Member Functions inherited from TuringSim::Symbol::SymbolPattern< SymbolType, std::map< SymbolType, State::MConfiguration::MConfiguration< SymbolType > > >
	SymbolPattern ()=default
	The default constructor.

	SymbolPattern (const SymbolPattern &)=default
	The default copy constructor.

	SymbolPattern (SymbolPattern &&)=default
	The default move constructor.

SymbolPattern &	operator= (const SymbolPattern &)=default
	The default copy assignment operator. More...

SymbolPattern &	operator= (SymbolPattern &&)=default
	The default move assignment operator. More...

virtual	~SymbolPattern ()=default
	The default virtual destructor.

virtual bool	match (const SymbolType &symbol, const Context &context) const noexcept=0
	Test whether a symbol match the pattern, given a context. More...

Additional Inherited Members
Public Types inherited from TuringSim::Symbol::SymbolPattern< SymbolType, std::map< SymbolType, State::MConfiguration::MConfiguration< SymbolType > > >
typedef SymbolType	SymbolType
	The type of symbols.

typedef std::map< SymbolType, State::MConfiguration::MConfiguration< SymbolType > >	Context
	The type of context.

Detailed Description

template<typename SymbolType>
class TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >

A DynamicSymbolPattern with a predicate adapted to m-configuration.

Template Parameters

SymbolType The type of symbols.

Definition at line 247 of file turingMachineSymbolPattern.h.

Constructor & Destructor Documentation

◆ TuringStyleDynamicSymbolPattern() [1/4]

template<typename SymbolType >

constexpr TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::TuringStyleDynamicSymbolPattern ( bool neg )

inlineexplicitconstexpr

Produce a trivial pattern.

Parameters

[in] neg if true, accepts everything. If false, rejects everything.

Definition at line 253 of file turingMachineSymbolPattern.h.

◆ TuringStyleDynamicSymbolPattern() [2/4]

template<typename SymbolType >

constexpr TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::TuringStyleDynamicSymbolPattern ( const SymbolType & key )

inlineconstexpr

Make a dynamic pattern that accepts a single key.

Parameters

[in] key the key to accept.

Definition at line 258 of file turingMachineSymbolPattern.h.

◆ TuringStyleDynamicSymbolPattern() [3/4]

template<typename SymbolType >

constexpr TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::TuringStyleDynamicSymbolPattern ( const std::set< SymbolType > & keys )

inlineconstexpr

Make a dynamic pattern that accepts a set of keys.

Parameters

[in] keys keys to accept.

Definition at line 263 of file turingMachineSymbolPattern.h.

◆ TuringStyleDynamicSymbolPattern() [4/4]

template<typename SymbolType >

constexpr TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::TuringStyleDynamicSymbolPattern	(	const std::set< SymbolType > &	keys,
		bool	neg
	)

inlineconstexpr

Make a dynamic pattern that accepts or rejects a set of keys.

Parameters

[in]	keys	keys to accept/reject.
[in]	neg	if true, keys are rejected rather than accepted.

Definition at line 269 of file turingMachineSymbolPattern.h.

Member Function Documentation

◆ match()

template<typename SymbolType >

virtual bool TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::match	(	const SymbolType &	symbol,
		const std::map< SymbolType, State::MConfiguration::MConfiguration< SymbolType >> &	context
	)		const

inlineoverridevirtual

Check is a symbol is accepted.

Parameters

[in]	symbol	the symbol to check.
[in]	context	a map from symbols to m-configurations.

Returns: The pattern matches if a key maps to a m-configuration that is a simple leaf equal to the symbol.

Definition at line 276 of file turingMachineSymbolPattern.h.

Here is the call graph for this function:

◆ operator!=()

template<typename SymbolType >

constexpr bool TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::operator!= ( const TuringStyleDynamicSymbolPattern< SymbolType > & other ) const

inlineconstexpr

Non-equality operator.

Parameters

[in] other the value to compare.

Returns: Whether the comparison is true.

Definition at line 294 of file turingMachineSymbolPattern.h.

Here is the call graph for this function:

◆ operator<()

template<typename SymbolType >

constexpr bool TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::operator< ( const TuringStyleDynamicSymbolPattern< SymbolType > & other ) const

inlineconstexpr

Less than operator. Total order.

Parameters

[in] other the value to compare.

Returns: Whether the comparison is true.

Definition at line 300 of file turingMachineSymbolPattern.h.

Here is the call graph for this function:

◆ operator==()

template<typename SymbolType >

constexpr bool TuringSim::Symbol::TuringStyleDynamicSymbolPattern< SymbolType >::operator== ( const TuringStyleDynamicSymbolPattern< SymbolType > & other ) const

inlineconstexpr

Equality operator.

Parameters

[in] other the value to compare.

Returns: Whether the comparison is true.

Definition at line 288 of file turingMachineSymbolPattern.h.

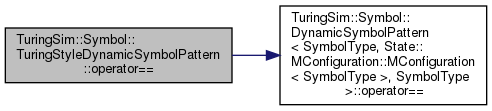

Here is the call graph for this function:

The documentation for this class was generated from the following file:

include/symbol/turingMachineSymbolPattern.h
